Front view of B5-DDU DIY dashboard, screen and LEDs lit

The DIY workshop

Progetto B5-DDU V2

Check it out

Free project files on MakerWorld.

Sfrutta il tuo potenziale fai da te con il progetto B5-DDU , pensato per gli appassionati di sim racing che desiderano costruire la propria dashboard. Questo progetto completo include tutto il necessario per creare una dashboard di alta qualità compatibile con Simhub .

EXTRA:

Modello del dashboard di Simhub sulle foto di lovelysimracing , dai un'occhiata a questo discordia pure.

Guida completa: include istruzioni dettagliate su dove acquistare i componenti, come assemblarli e come flashare il software. Sono forniti tutti i file necessari per la produzione, inclusi i file DXF/AI per le piastre frontali e i file Gerber per l'ordinazione dei PCB.

Non esitate a contattarci per qualsiasi aiuto o suggerimento

Facebook
Instagram
Discordia

Solo per uso personale - Non rivendibile

Dopo l'acquisto, riceverai un'e-mail con tutti i file. Questo è un modo pratico per supportare i nostri progetti e personalizzare i tuoi progetti fai da te, poiché la maggior parte dei file è già disponibile gratuitamente. Il tuo contributo ci aiuta a continuare a offrirti progetti di qualità. Non esitare a contattarci per qualsiasi aiuto o suggerimento.

Build resources

Bill of materials Assembly guide

MAKE IT YOURS

Choose your parts.

Already have something? Leave it out.
Check the bill of materials for your complete build.

Velocitas Imperium B5 DDU sim racing dashboard display unit PCB

Scheda PCB B5-DDU V2

€58,00

Qty

Velocitas Imperium B5 DDU CNC-machined sim racing dashboard enclosure

Guscio CNC B5-DDU V2

€56,00

Qty

Velocitas Imperium B5 DDU sim racing dashboard glass display panel

Vetro B5-DDU

€23,00

Qty

Velocitas Imperium Brows sim racing PCB with RGB LED indicators and button matrix

Modulo 8 LED Brow PCB

€22,00

Qty

Modulo 8 LED Brow Plexi

€22,00

Qty

Velocitas Imperium sim racing DDU mounting bracket for dashboard display unit installation

Universal Mount for VI DDUs

€15,00

Qty

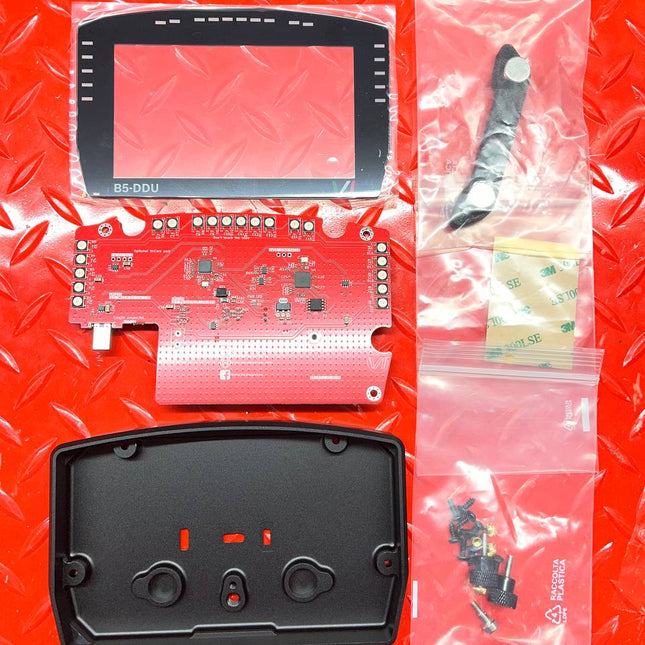

Velocitas Imperium B5 DDU sim racing dashboard Pro Kit

B5-DDU Pro Kit(DIY bundle)

€159,00

Qty

Know your build

Project details

Specifications

These specs reflect the intended result of the project when built according to the included documentation and BOM.

5" VoCore screen
20 programmable RBG LEDs (Simhub compatible)
Glass front panel design included in files
USB Type-C with integrated USB hub for single cable setup
Approx. 30 minutes build
Magnetic mount compatible with most of the DDs in the market(Simucube, simagic, VRS, OSW and Moza R9 V3)
Port expander for additional telemetry LED devices (e.g., brows or flags)
Dimensions : 149mm (W) × 93mm (H) × 18mm (D)

It fits very well on most rigs, to get the unit very close to the monitor a 90 degree adapter is suggested.

Features

• Compact 5-inch dashboard designed for sim racing rigs
• 20 individually programmable RGB telemetry LEDs
• Full compatibility with SimHub
• Support for telemetry alerts including flags, traction control and ABS activation
• Integrated USB hub for a clean single-cable connection
• USB Type-C expansion port for LED brows and flag displays
• Touch-compatible VoCore display
• Compatible with SimHub, Z1 Dashboard and JRT
• Magnetic mounting system for quick installation and removal
• Front glass, 3D-printing and CNC production options

What's included

STL Files for 3D Printed Parts
Extra files for Glass and UV print silkscreen production
STEP Files for CNC production
18-Page Manual
BOM (Bill of materials)
Support on our own Discord

Before you build

The VoCore screen and physical components are not included with the project files. Use the Bill of Materials to source the required components, or purchase selected parts directly from Velocitas Imperium.

The V2 digital package does not include the PCB Gerber files.

If you already own parts for the V1 version, you can still complete the build using the files inside the V1 folder.

To upgrade a V1 build to V2, you will need a new PCB, main body and internal chassis. The remaining components can be reused.

The B5-DDU fits well on most sim racing rigs. If you want to position it very close to your monitor, a 90-degree USB adapter is recommended.

The project files are intended for personal use only and may not be redistributed, resold or used commercially.
