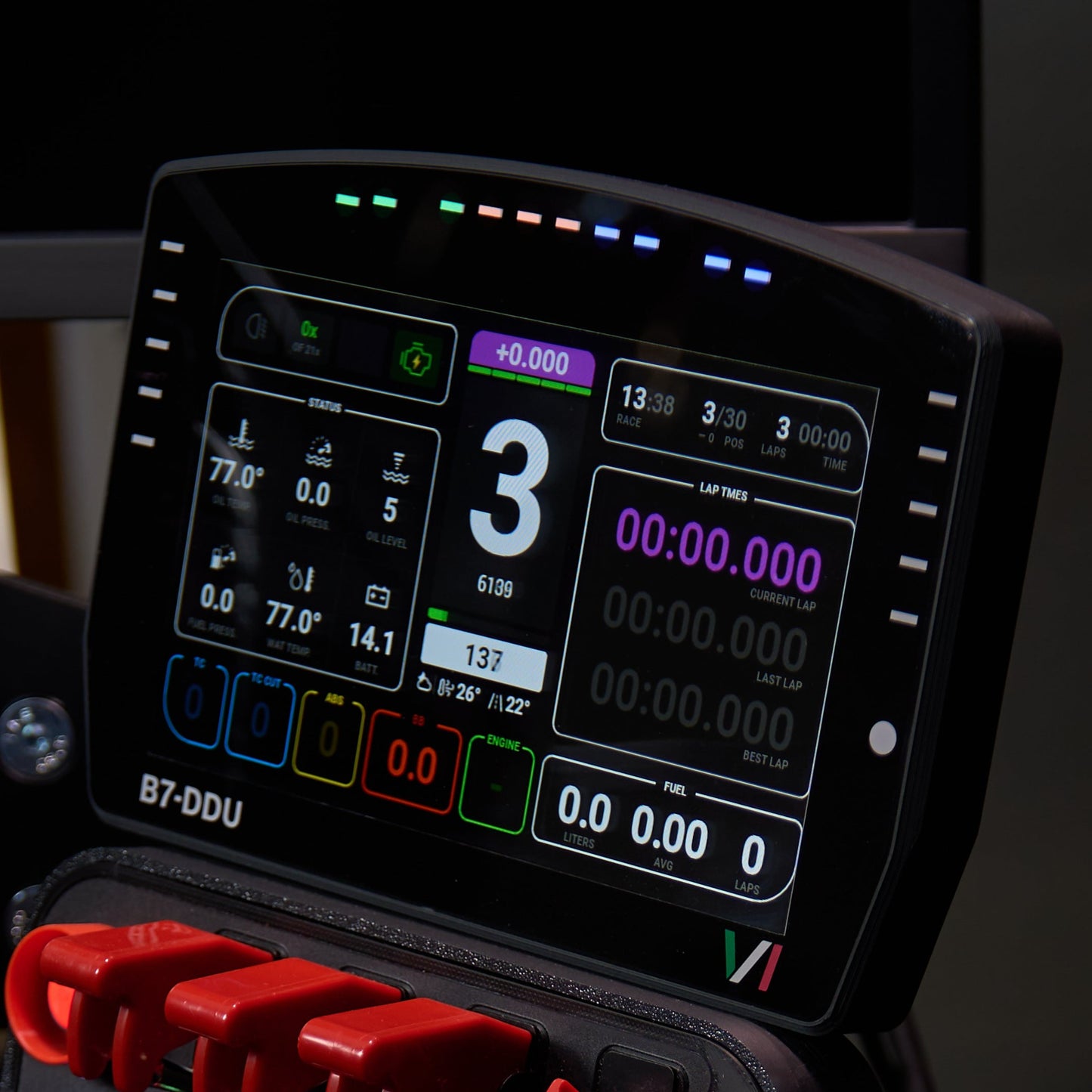

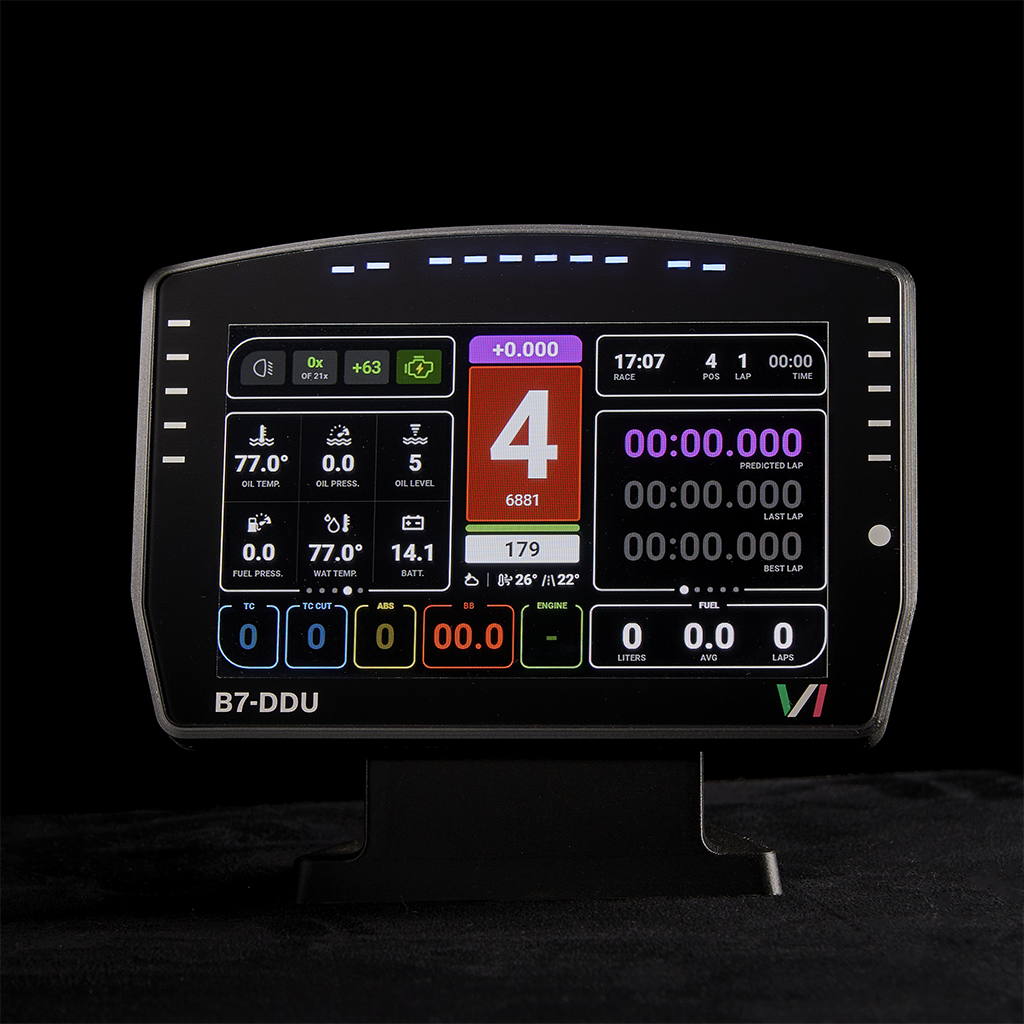

hero image of the B7-DDU

ASSEMBLE IT BUY IT

Forma del prodotto

Progetto B7-DDU V2

€0,00I.V.A. esclusa

Download for free

Check the BOM

Check the Assembly

Sfrutta il tuo potenziale fai da te con il progetto B7-DDU , pensato per gli appassionati di sim racing che desiderano costruire la propria dashboard. Questo progetto completo include tutto il necessario per creare una dashboard di alta qualità compatibile con Simhub .

EXTRA:

Modello del dashboard di Simhub sulle foto di lovelysimracing , dai un'occhiata a questo discordia pure.

Guida completa: include istruzioni dettagliate su dove acquistare i componenti, come assemblarli e come flashare il software. Sono forniti tutti i file necessari per la produzione, inclusi i file DXF/AI per le piastre frontali e i file Gerber per l'ordinazione dei PCB.

Non esitate a contattarci per qualsiasi aiuto o suggerimento

Facebook
Instagram
Discordia

Solo per uso personale - Non rivendibile

Dopo l'acquisto, riceverai un'e-mail con tutti i file. Questo è un modo pratico per supportare i nostri progetti e personalizzare i tuoi progetti fai da te, poiché la maggior parte dei file è già disponibile gratuitamente. Il tuo contributo ci aiuta a continuare a offrirti progetti di qualità. Non esitare a contattarci per qualsiasi aiuto o suggerimento.

Descrizione

Sfrutta il tuo potenziale fai da te con il progetto B7-DDU , pensato per gli appassionati di sim racing che desiderano costruire la propria dashboard. Questo progetto completo include tutto il necessario per creare una dashboard di alta qualità compatibile con Simhub .

EXTRA:

Modello del dashboard di Simhub sulle foto di lovelysimracing , dai un'occhiata a questo discordia pure.

Guida completa: include istruzioni dettagliate su dove acquistare i componenti, come assemblarli e come flashare il software. Sono forniti tutti i file necessari per la produzione, inclusi i file DXF/AI per le piastre frontali e i file Gerber per l'ordinazione dei PCB.

Non esitate a contattarci per qualsiasi aiuto o suggerimento

Facebook
Instagram
Discordia

Solo per uso personale - Non rivendibile

Dopo l'acquisto, riceverai un'e-mail con tutti i file. Questo è un modo pratico per supportare i nostri progetti e personalizzare i tuoi progetti fai da te, poiché la maggior parte dei file è già disponibile gratuitamente. Il tuo contributo ci aiuta a continuare a offrirti progetti di qualità. Non esitare a contattarci per qualsiasi aiuto o suggerimento.

All the project-related information is condensed here.

Specifications

These specs reflect the intended result of the project when built according to the included documentation and BOM.

  • 6,8" VoCore screen
  • 20 programmable RBG LEDs (Simhub compatible)
  • Glass front panel design included in files
  • USB Type-C with integrated USB hub for single cable setup
  • Approx. 60 minutes build
  • Magnetic mount compatible with most of the DDs in the market(Simucube, simagic, VRS, OSW and Moza R9 V3)
  • Port expander for additional telemetry LED devices (requires a bit of soldering)
  • Dimensions : 191mm (W) × 130mm (H) × 29mm (D)
What's included
  • STL Files for 3D Printed Parts
  • Extra files for Glass and UV print silkscreen production
  • STEP Files for CNC production
  • Comprehensive Manual
  • BOM (Bill of materials)
  • Support on our own Discord
How it works
  • V2 files are included in the digital download, except for the Gerber files.
  • If you already have parts for the V1 version, you can still complete the build using the files in the V1 folder.
  • Planning to upgrade? You’ll need a new PCB and rear shell for V2. The rest of the components remain the same.

About the regular build:
The B7-DDU is a DIY project — you receive all the necessary files to 3D print, CNC, or manufacture the parts yourself(gerber files excluded). Using the included BOM (Bill of Materials), you can source components on your own, or optionally order parts directly from us to save time — especially helpful if you're not comfortable with electronics assembly.

We also offer glass front panels, which can be difficult to source in small quantities.

Related items

  • B7-DDU Simracing Dashboard Simhub B7-DDU Simracing Dashboard Simhub

    Progetto B7-DDU V2

    €0,00I.V.A. esclusa

    Esaurito. Files on MakerWorld!As we assemble made-to-order products after the order is placed, they have longer delivery times. For this reason, please check our policies to find out more about shipping and returns. These are estimates based on our current stock and are updated as often as possible. If you need a more specific delivery time, just send us an email and we will be happy to help.
    DIY parts are usually shipped the day after. We are based in Italy, so our time zone is GMT+1. Please take this into account.


    Please note that products marked as 'Not in stock' are awaiting restocking, so their lead time is based on our expected restocking date.

    Out-of-stock projects are simply moved to MakerWorld. Open the product page and look for the button to be directed there.

    Pre-order items have different delivery times, which are usually specified on the product page. Please read these carefully or send us a message if you have any questions.

  • B7-DDU PCB Rear of B7-DDU PCB

    Scheda PCB B7-DDU V2

    €67,00I.V.A. esclusa

  • CNC shell for B7-DDU CNC shell for B7-DDU

    Guscio CNC B7-DDU V2

    €99,00I.V.A. esclusa

  • Simracing dashboard Glass cover silkscreen

    Vetro B7-DDU

    €25,00I.V.A. esclusa

  • PCB for VI LED Brows PCB for VI LED Brows

    Modulo 8 LED Brow PCB

    €22,00I.V.A. esclusa

  • PCB module PCB module

    Modulo di espansione

    €9,00I.V.A. esclusa

  • Plexiglass front cover for VI LED brows Plexiglass front cover for VI LED brows

    Modulo 8 LED Brow Plexi

    €22,00I.V.A. esclusa

    Esaurito

  • Universal Mount for VI DDUs Universal Mount for VI DDUs

    Universal Mount for VI DDUs

    €15,00I.V.A. esclusa

  • Simracing dashboard B7-DDU

    20 PROGRAMMABLE LEDs

    Transform your racing experience with 20 fully programmable RGB LEDs. Customize these LEDs using telemetry-based software like Simhub and our specially crafted LED profiles.

    Enhance your dashboard with visual cues such as flag signals, TCS, and ABS activations. With the ability to program each LED for various alerts and notifications, you'll stay fully immersed in the race with real-time updates right on your dashboard.

  • Simracing dashboard B7-DDU

    6.8" display

    You can use your dashboard with the most popular telemetry-based software such as Simhub, Z1 Dashboard and JRT.

    Customise your dashboard with the most realistic dash layout you want.

    Touch compatible.

  • Type C connector of B7-DDU

    PCB

    Only one cable is needed to connect to your PC, thanks to the customised PCB with integrated hub.

     LEDs precisely mounted on the PCB to get the best result from each one.

Frequently Asked Questions

If you have any questions about the product or your purchase, check out our FAQs. Otherwise, we are happy to help, just send us an email!

What is the reason for the low cost?

You're not buying the finished product, just the digital files needed to make it. Check the 'Made to Order' page at the top of the website to see what we actually sell as finished products.

Console support

We cannot guarantee support for consoles. All our products are designed for use with PCs.
