VelocitasImperium

B7-DDU V2 Project

B7-DDU V2 Project

€0,00 EUR
€9,99 EUR €0,00 EUR
Sale Sold out

Excl. VAT. Taxes will be calculated at checkout for EU customers.

Files now HERE



Unlock your DIY potential with the B7-DDU Project, designed for sim racing enthusiasts who want to build their own dashboard. This comprehensive project includes everything you need to create a top-notch Simhub-compatible dashboard.

EXTRA:

Simhub dashboard template on the photos by lovelysimracing checkout his discord too.

Comprehensive Guide: Includes detailed instructions on where to buy components, how to assemble them, and how to flash the software. All necessary files for production, including DXF/AI files for the front plates and Gerber files for PCB ordering, are provided.



Feel free to contact us for any help or suggestions

Facebook
Instagram
Discord

For personal use only - Not for resale

After purchase, you will receive an email with all the files. This is a convenient way to support our projects and personalize your DIY projects, as most of the files are already available for free. Your contribution helps us continue our work in bringing you quality projects. Feel free to contact us for any help or suggestions.

Specifications

These specs reflect the intended result of the project when built according to the included documentation and BOM.

  • 6,8" VoCore screen
  • 20 programmable RBG LEDs (Simhub compatible)
  • Glass front panel design included in files
  • USB Type-C with integrated USB hub for single cable setup
  • Approx. 60 minutes build
  • Magnetic mount compatible with most of the DDs in the market(Simucube, simagic, VRS, OSW and Moza)
  • Port expander for additional telemetry LED devices (requires a bit of soldering)
  • Dimensions : 191mm (W) × 130mm (H) × 29mm (D)

What's included

  • STL Files for 3D Printed Parts
  • Extra files for Glass and UV print silkscreen production
  • STEP Files for CNC production
  • Comprehensive Manual
  • BOM (Bill of materials)
  • Support on our own Discord

How it works

  • V2 files are included in the digital download, except for the Gerber files.
  • If you already have parts for the V1 version, you can still complete the build using the files in the V1 folder.
  • Planning to upgrade? You’ll need a new PCB and rear shell for V2. The rest of the components remain the same.

About the regular build:
The B7-DDU is a DIY project — you receive all the necessary files to 3D print, CNC, or manufacture the parts yourself(gerber files excluded). Using the included BOM (Bill of Materials), you can source components on your own, or optionally order parts directly from us to save time — especially helpful if you're not comfortable with electronics assembly.

We also offer glass front panels, which can be difficult to source in small quantities.

View full details

Featured collection

1 8
Simracing dashboard B7-DDU

20 PROGRAMMABLE LEDs

Transform your racing experience with 20 fully programmable RGB LEDs. Customize these LEDs using telemetry-based software like Simhub and our specially crafted LED profiles.

Enhance your dashboard with visual cues such as flag signals, TCS, and ABS activations. With the ability to program each LED for various alerts and notifications, you'll stay fully immersed in the race with real-time updates right on your dashboard.

Simracing dashboard B7-DDU

6.8" display

You can use your dashboard with the most popular telemetry-based software such as Simhub, Z1 Dashboard and JRT.

Customise your dashboard with the most realistic dash layout you want.

Touch compatible.

Type C connector of B7-DDU

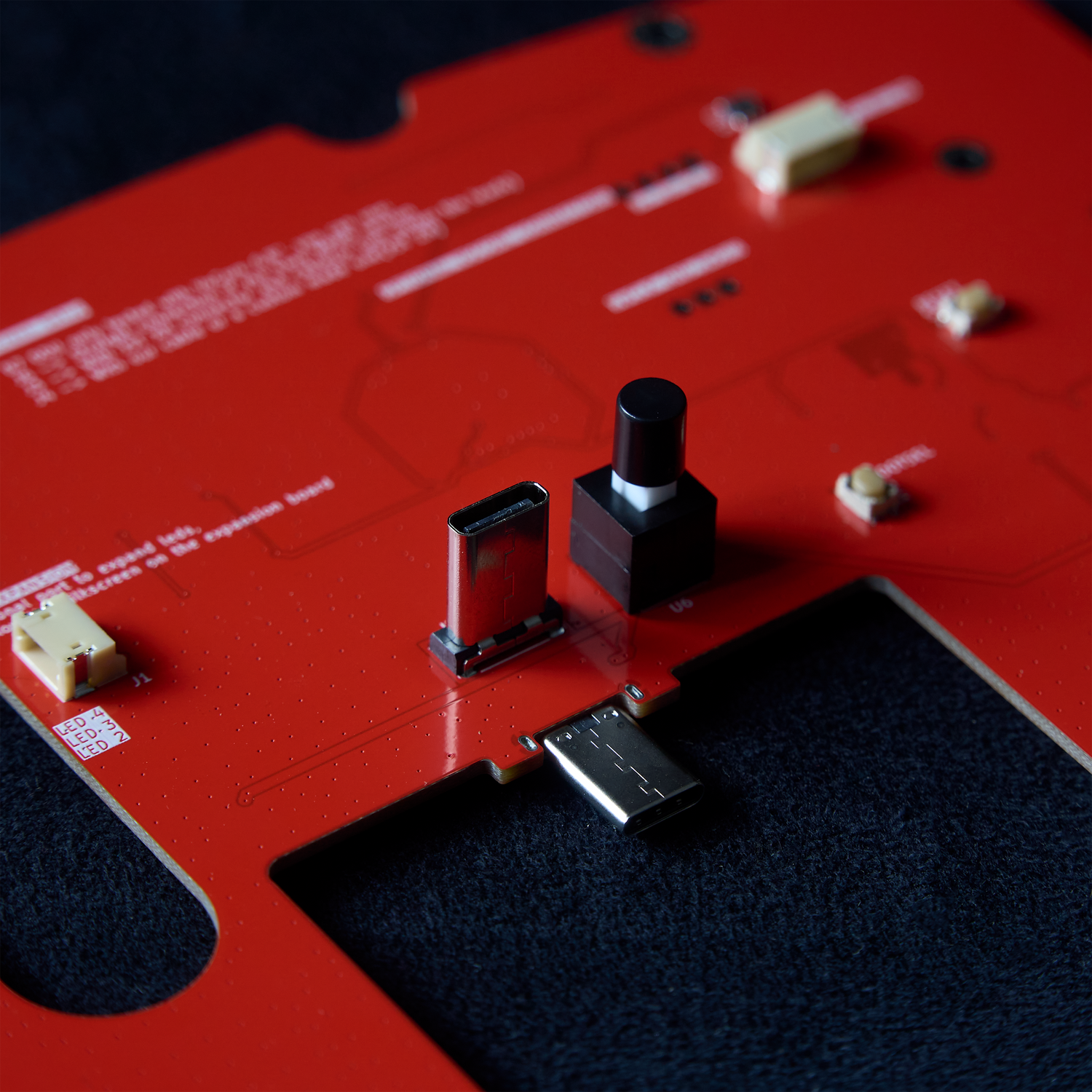

PCB

Only one cable is needed to connect to your PC, thanks to the customised PCB with integrated hub.

 LEDs precisely mounted on the PCB to get the best result from each one.
