VelocitasImperium

EQUUS 296 GTX

EQUUS 296 GTX

€1.199,00 EUR
€1.199,00 EUR
Sale Sold out

Excl. VAT. Taxes will be calculated at checkout for EU customers.

SHIPS 20th of November

  • 6mm Aluminum Front plate
  • CNC Rear enclosure
  • Custom PCB With:
  • 12 x Tactile switches
  • 2 x 7-way switches
  • 4 x Rotary encoders
  • 4 x Absolute encoders
  • 1 x Rotary Switch
  • 111 RGB Leds for Buttons and Status lights
  • 2 x Magnetic Ball bearing shifters
  • 2 x Hall analog clutches

Feel free to contact us for any help or suggestions

Facebook
Instagram
Discord

    Highlights

    300mm diameter

    • 1480 grams (QR Excluded)
    • 6mm Aluminum Front plate
    • CNC Rear enclosure

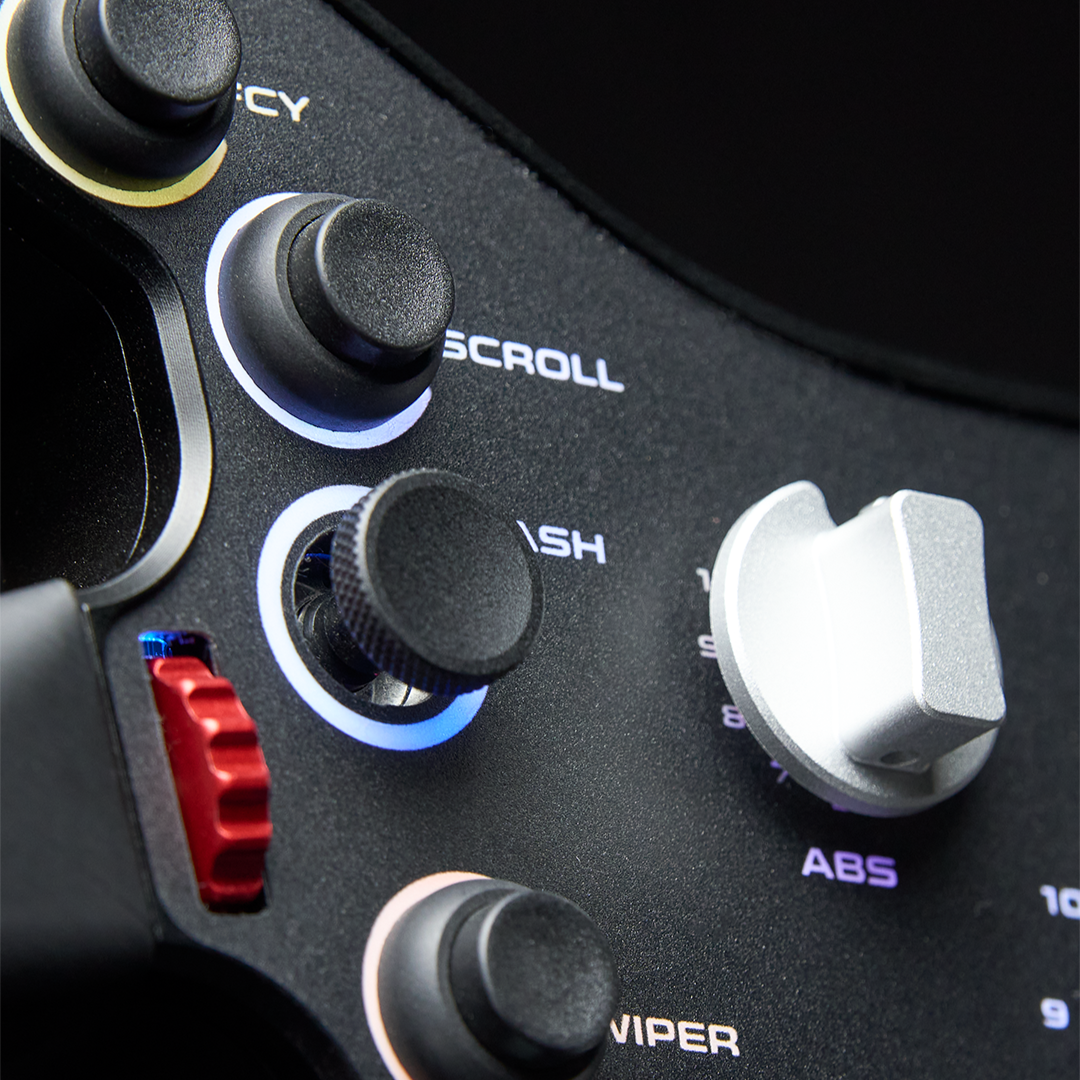

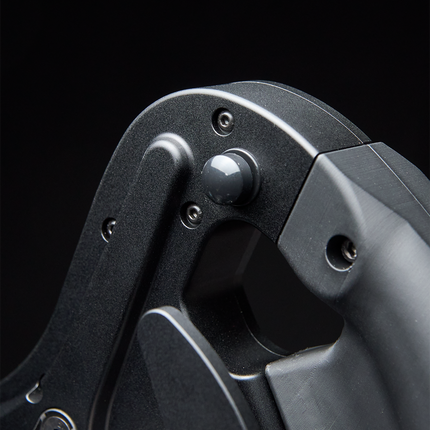

    • 12 Momentary pushbuttons(7N)
    • 2 x 7-way joysticks
    • 4 x rotary encoders
    • 5 x Absolute encoders
    • 110 RGB Leds for Buttons/Shifter and Status lights
    • 2 x Magnetic Ball bearing shifters
    • 2 x Magnetic Ball bearing clutches

    What's included

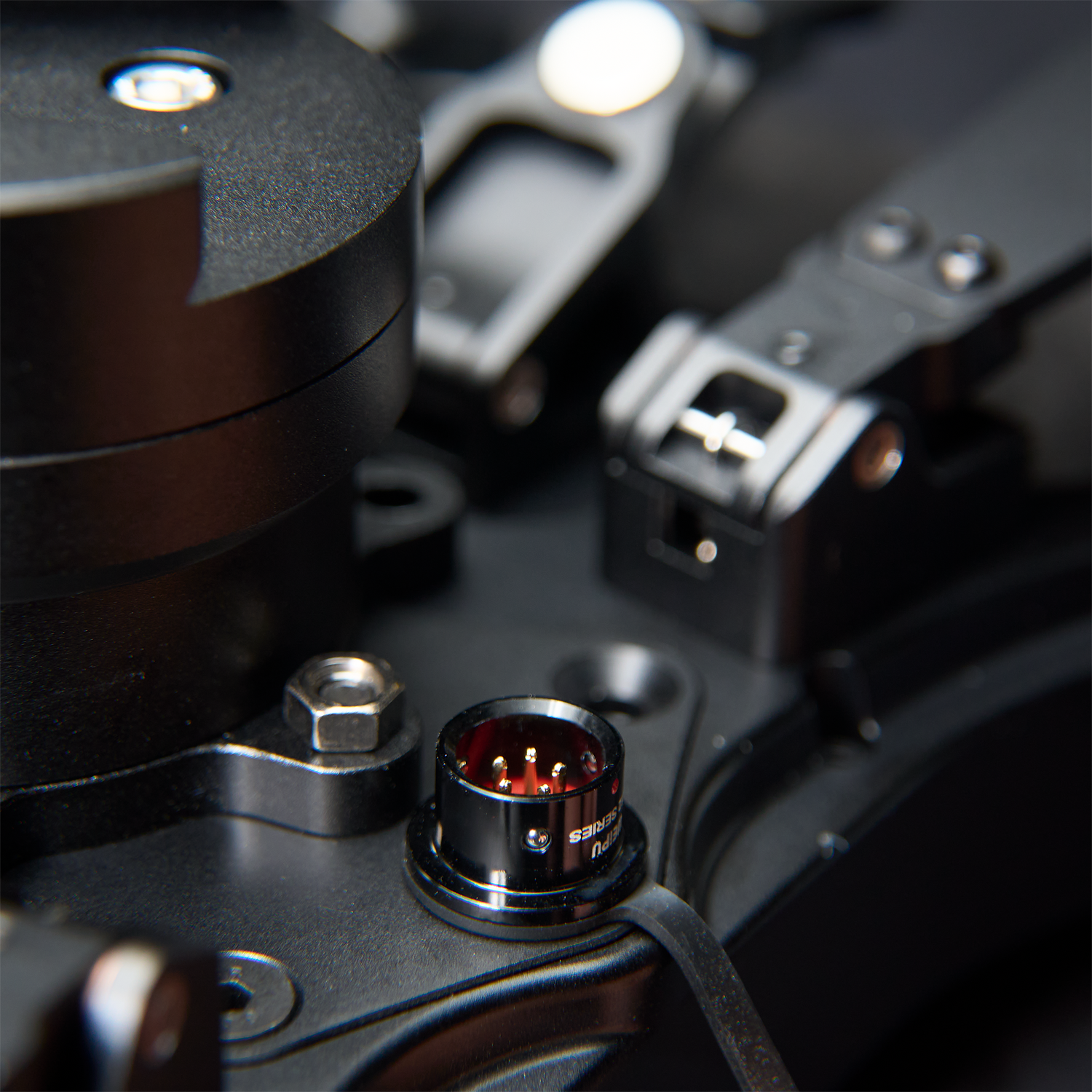

    • 2m Coiled cable with quick release connector
    • Equus 296 GT3
    View full details

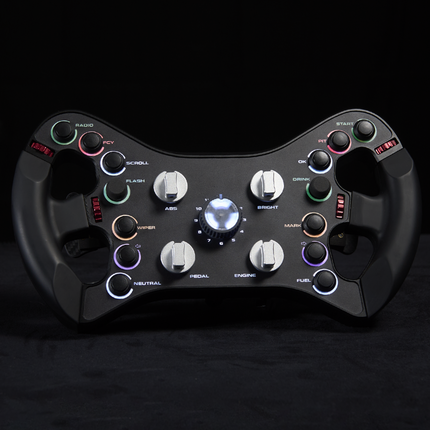

    Simracing steering wheel Equus 296 GTX

    Inputs

    The steering wheel has a total of 88 inputs, 2 of which are analogue.

    Simracing steering wheel Equus 296 GTX

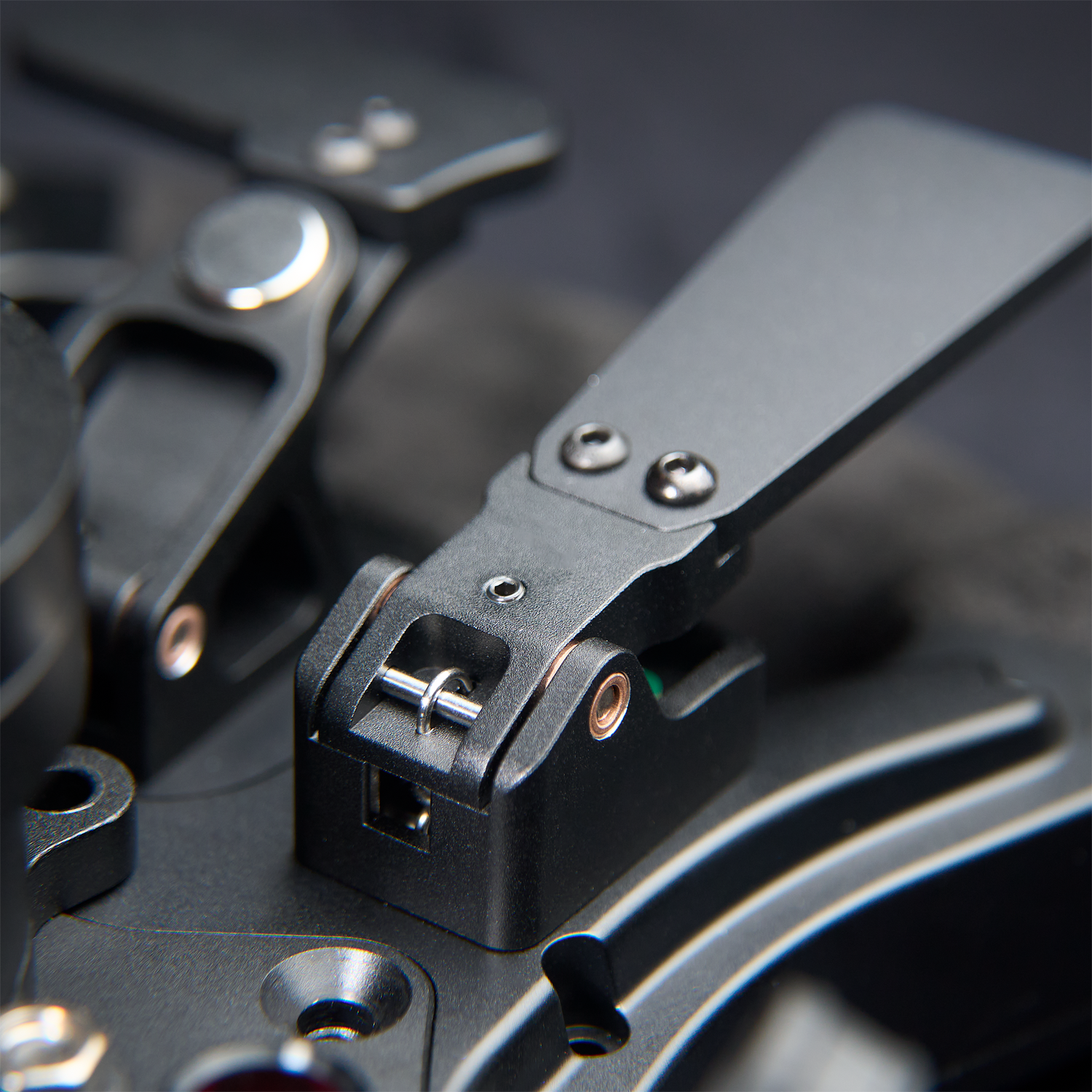

    Dual Clutches

    The wheel can be configured with a dual clutch system, get your starts perfect every time with a custom set bite point, all done on the fly with the wheel buttons.

    Simracing Steering wheel pcb

    PCB

    Custom made PCB, no extra software required, ready to use out of the box.

    Manual provided to use the bite point functionality, no extra potentiometer or dedicated button to change it, each button can be used for your favorite game.

    Simracing steering wheel Equus 296 GTX

    38 PROGRAMMABLE LEDs

    You can control your RGB LEDs with telemetry based software like Simhub.

    Add immersion to your experience with visual information like flags or TCS ABS activations right on your wheel.

    Full specs

    310mm wheel diameter

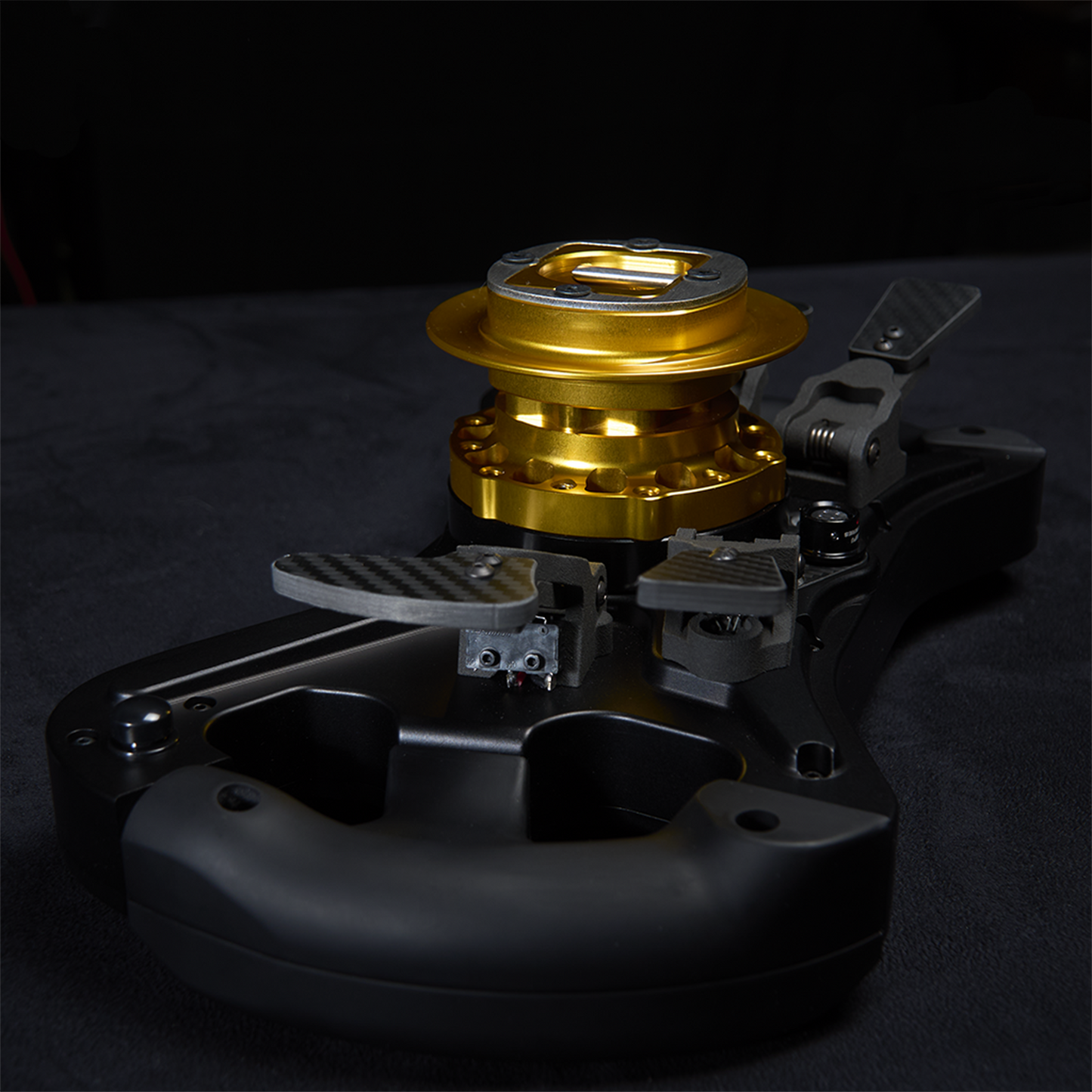

    3 x 70mm pcd bolt pattern

    Weight 1480 grams (QR Excluded)

    Front plate material: Aluminum 6061

    Rear material: Aluminium 6061/ Carbon fiber

    Paddle material: 4mm thick carbon fiber

    12 x Skst momentary pushbuttons

    4 x Bourns encoders with 16 detents per rotation

    5 x Absolute encoders with 12 positions

    2 x Alps 7-way joysticks

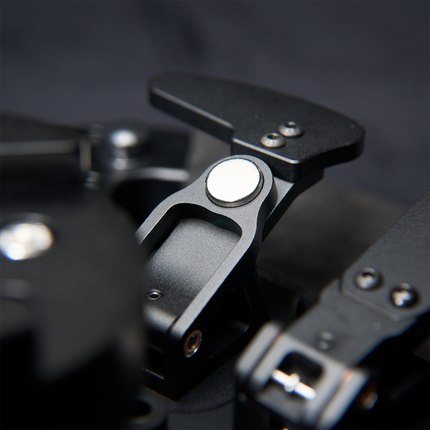

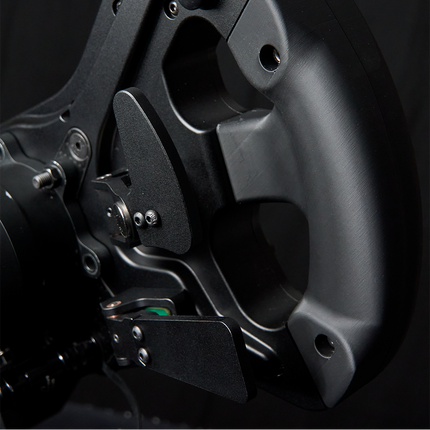

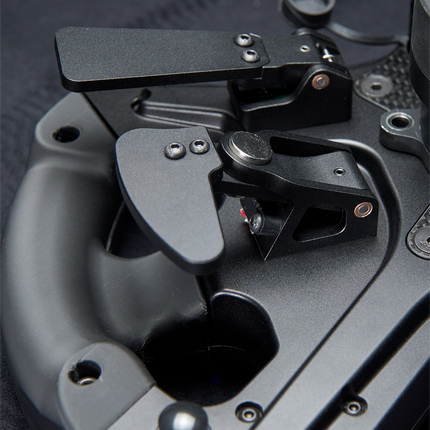

    2 x Magnetic shifter(real N45)

    110 x WS2812B RBG leds

    FAQ

    Q: How can i get this product?

    A: You can send us a message in the form below, we'll aswer as soon as possible.



    Q: Is it compatible with my ps4/console?

    A: No, but we're working on a console compatible wheel for Thrustmaster users.



    Q: Will it work with my fanatec Base?

    A: It needs a Fanatec Podium Hub to work.



    Q: Do i need to install Drivers or software to use the Equus?

    A: No, you can just plug it in and it will be recognised by Windows as a normal joystick.

    Note that the LEDs are controlled by the Simhub but are completely optional.



    Q: How can i mount to my Base?

    A: It has a 70mm Bolt pattern, you will need a QR with the same pattern(almost every QR has a 70mm pcd pattern)

    Compatibility

    • Simucube 1 & 2
    • VRS DirectForce Pro
    • Simagic
    • Moza
    • Thrustmaster
    • Cammus
    • OSW
    • Fanatec (With podium hub)

    If you're interested in a complete unit contact us with the form below
