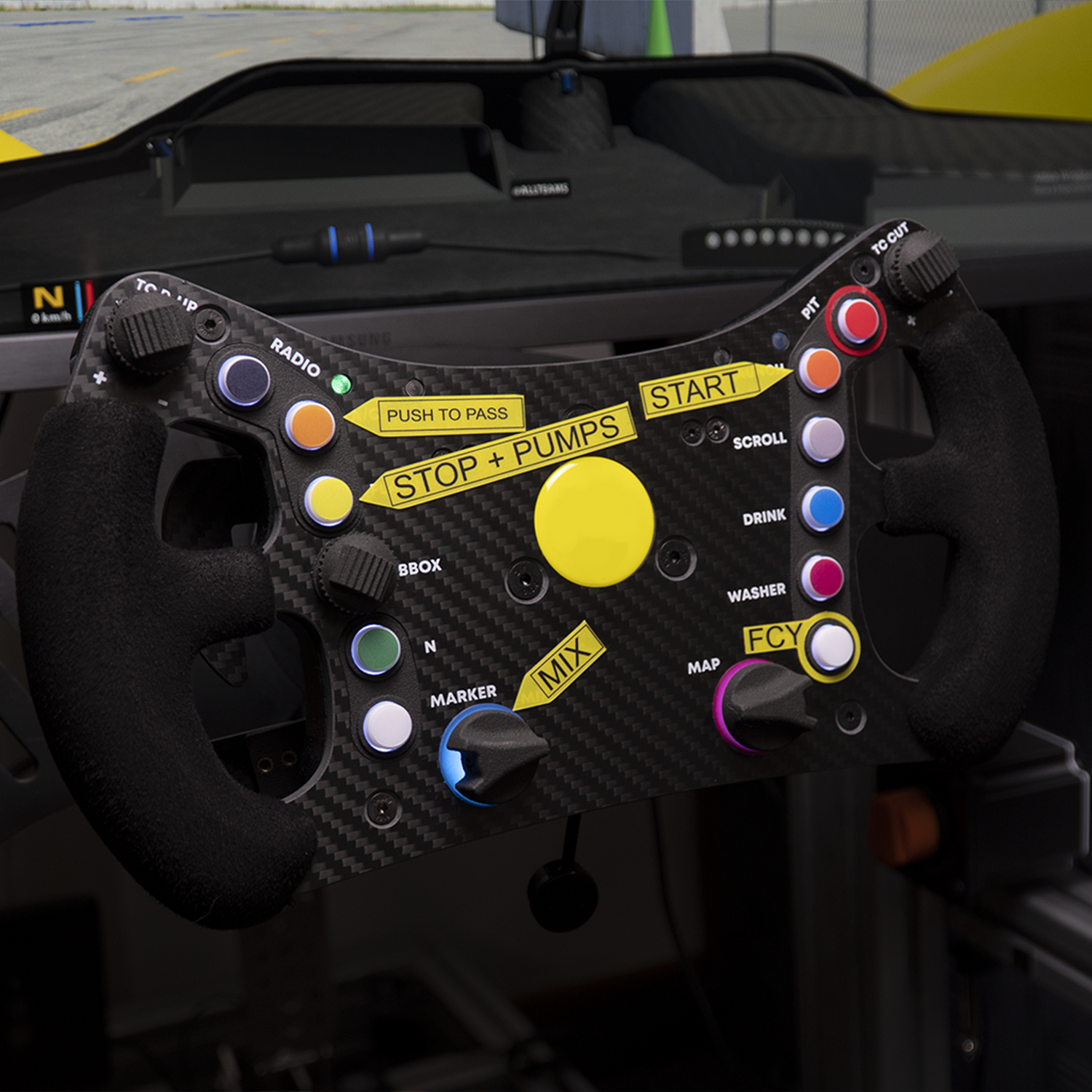

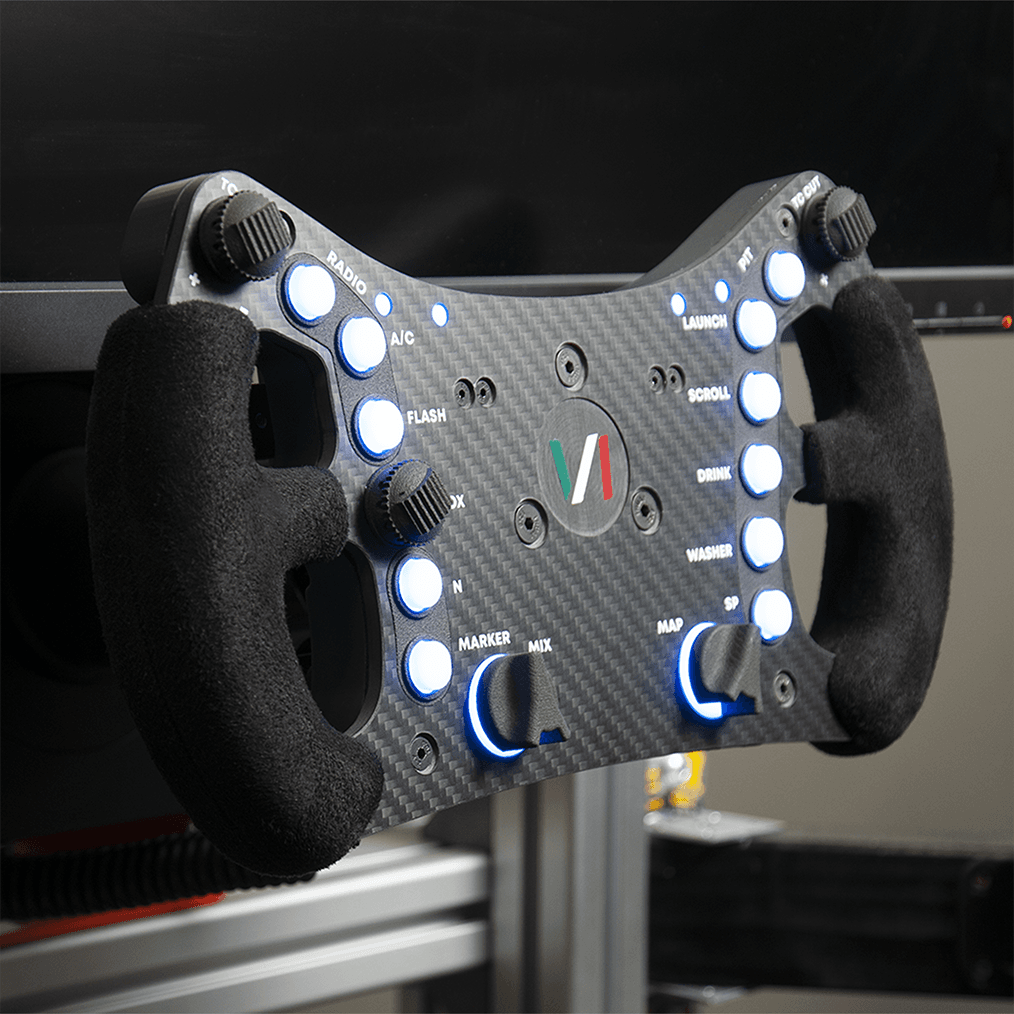

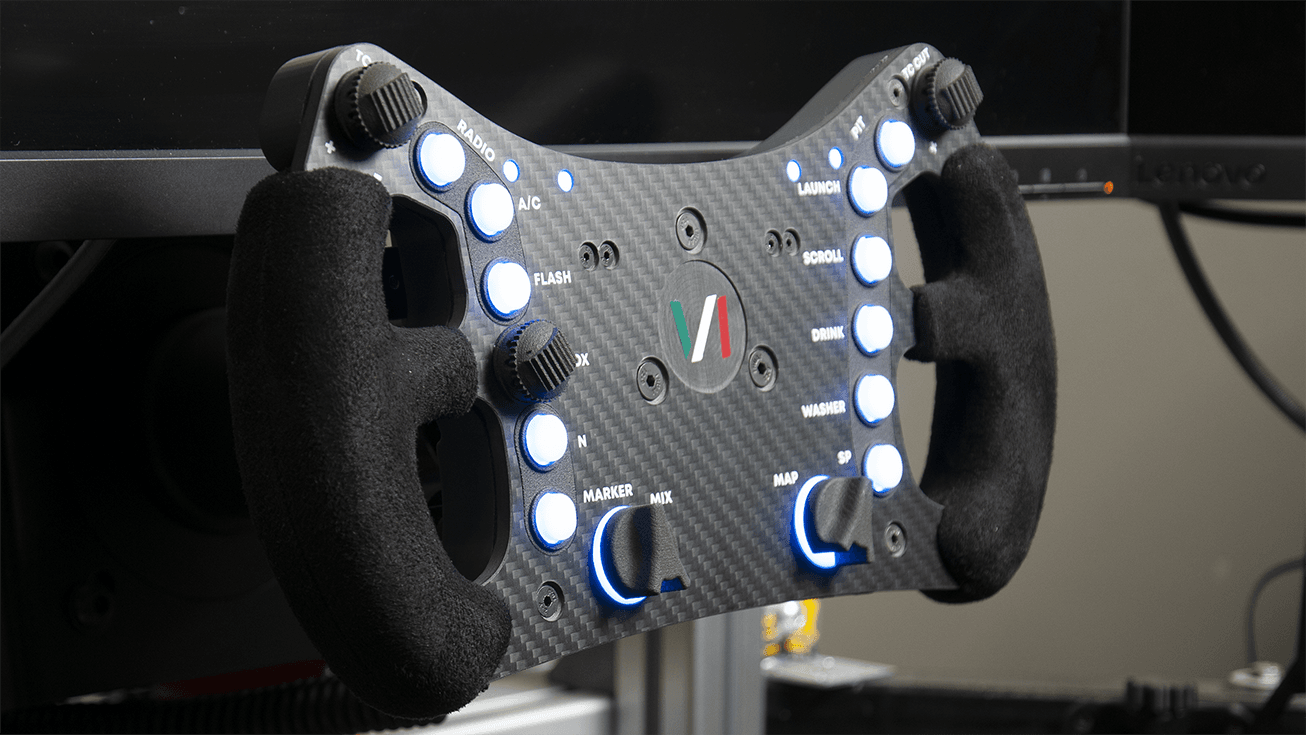

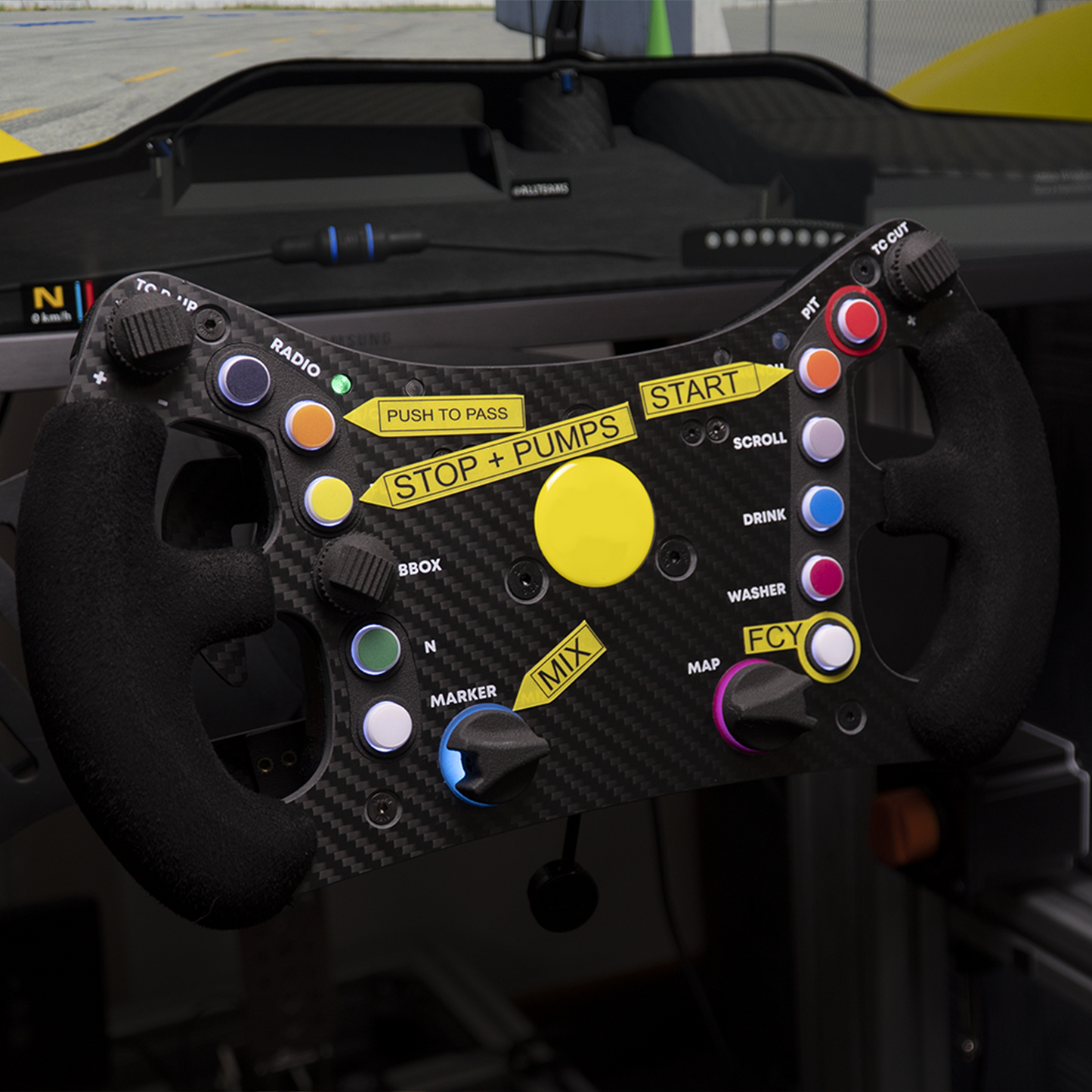

EQUUS 488 GT3
EQUUS 488 GT3
Take your sim racing experience to the next level with the EQUUS 488 GT3. Ready to use straight out of the box. Designed for high performance and realism.
Made on order, SHIPS IN 2-3 WEEKS
SPECS:
- 5mm Carbon fibre plate
- 5mm Rear plate
- Custom PCB With:
- 11 x Tactile switches
- 3 x 7-way switches
- 2 x Rotary encoders
- 38 RGB Leds for Buttons/Shifter and Status lights
- 2 x Magnetic Ball bearing switches
- 2 x Magnetic Ball bearing clutches
- Fully Realistic Rear Enclosure (SLS Nylon)
- Simhub compatible
Highlights
Highlights
- 295mm diameter
- 898 grams (QR Excluded)
- 5mm thick carbon fiber front plate
- 11 Momentary pushbuttons(OMRON 260 gram force)
- 3 x 7-way joysticks
- 2 x rotary encoders with push button
- 38 RGB LEDs compatible with Simhub
What's included
What's included
- Equus 488 GT3
- Sticker sheet and center badge
- Coiled cable
Inputs
The steering wheel has a total of 42 inputs, 2 of which are analogue.
Dual Clutches
The wheel can be configured with a dual clutch system, get your starts perfect every time with a custom set bite point, all done on the fly with the wheel buttons.
38 PROGRAMMABLE LEDs
You can control your RGB LEDs with telemetry based software like Simhub.
Add immersion to your experience with visual information like flags or TCS ABS activations right on your wheel.
Collapsible content
Full specs
295mm wheel diameter
3 x 70mm pcd bolt pattern
Weight 898 grams (QR Excluded)
Front plate material: Carbon fiber 3k twill glossy
Rear plate material: Aluminium 6061
Paddle material: Industrial Grade Resin
40 digital inputs, 2 analog axys
11 x Omron momentary pushbuttons
2 x Bourns encoders with 12 detents per rotation with push button functionality
3 x Alps 7-way joysticks
2 x Magnetic shifter(real N52)
38 x WS2812B RBG leds
Simhub compatible
FAQ
Q: How can i get this product?
A: You can send us a message in the form below, we'll aswer as soon as possible.
Q: Is it compatible with my ps4/console?
A: No, but we're working on a console compatible wheel for Thrustmaster users.
Q: Will it work with my fanatec Base?
A: It needs a Fanatec Podium Hub to work.
Q: Do i need to install Drivers or software to use the Equus?
A: No, you can just plug it in and it will be recognised by Windows as a normal joystick.
Note that the LEDs are controlled by the Simhub but are completely optional.
Q: How can i mount to my Base?
A: It has a 70mm Bolt pattern, you will need a QR with the same pattern(almost every QR has a 70mm pcd pattern)
Compatibility
- Simucube 1 & 2
- VRS DirectForce Pro
- Simagic
- Moza
- Thrustmaster
- Cammus
- OSW
- Fanatec (With podium hub)
